A Palm-Sizedx86 Single-Board Computer

The Friend You Know

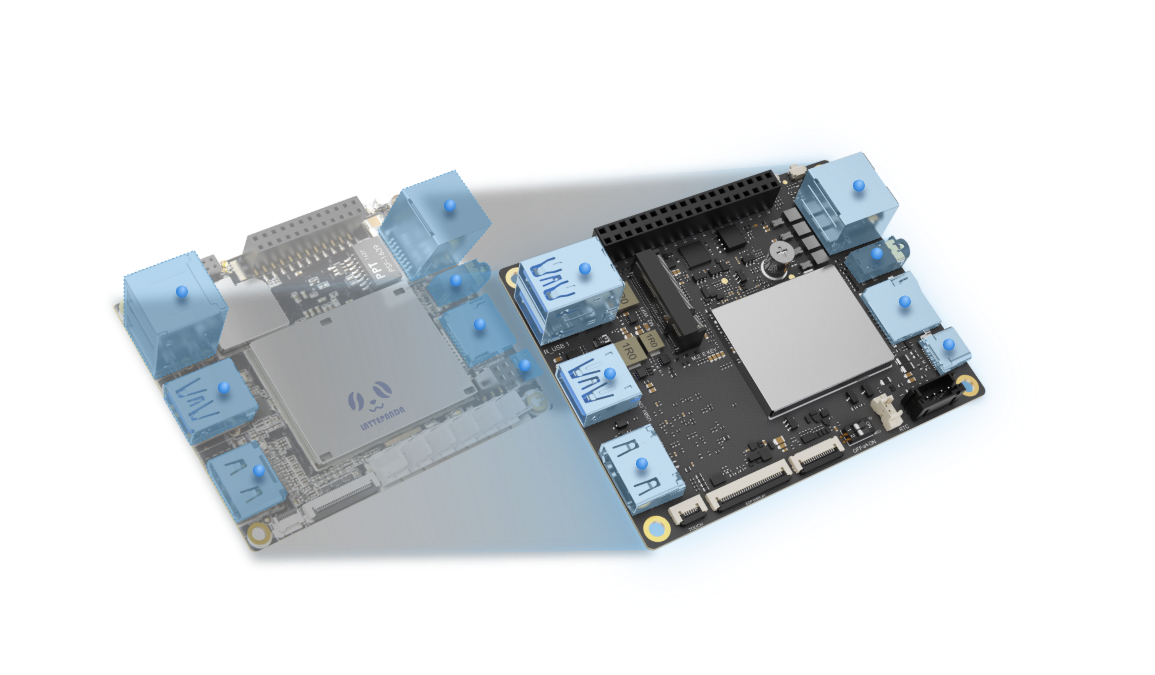

Same Form
Seamless Upgrade
LattePanda V1 LattePanda IOTA
He's 8X Faster Now

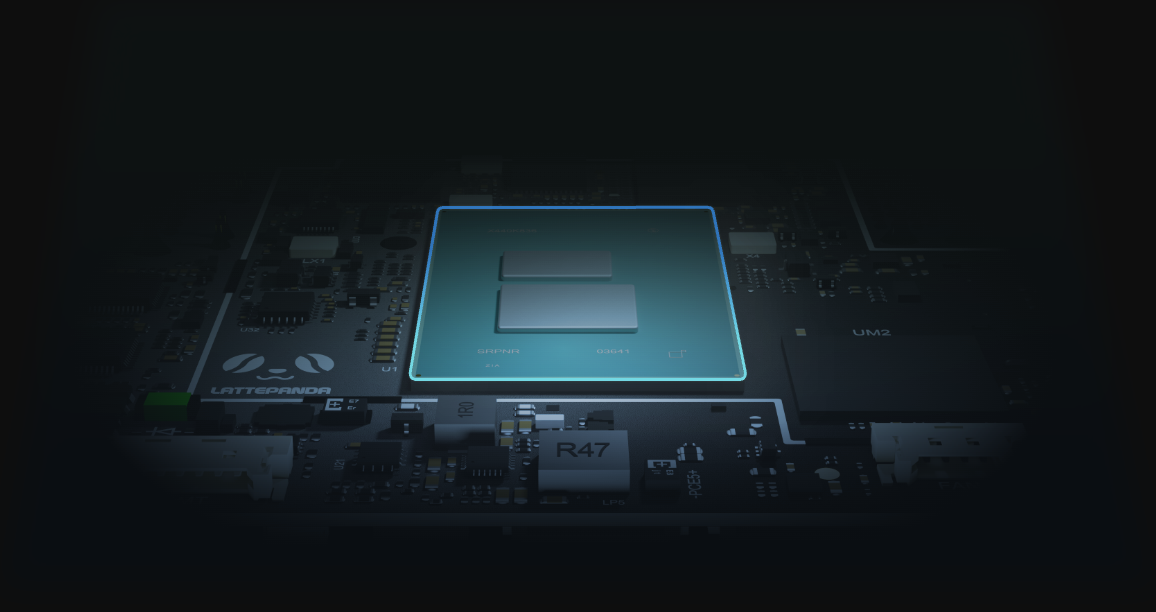

cpu
  • CPU 4 Core 3.6GHz MAX
  • Memory Up to 16GB LPDDR5 4800MT/s
    with In-band ECC
  • Storage Up to 128GB eMMC 5.1
background

Benchmark

  • LattePanda lOTA (Intel® Processor N150)

    2820

    1193

  • Raspberry Pi 5

    1550

    750

  • Intel® Celeron® N5105

    1500

    500

  • LattePanda V1 (Intel® Atom™ x5-Z8350)

    372

    135

0 500 1000 1500 2000 2500 3000 3500

  • Multi-core

    Single-core
    • LattePanda lOTA N150 benchmark with 15W TDP setting From Geekbench 6
    background

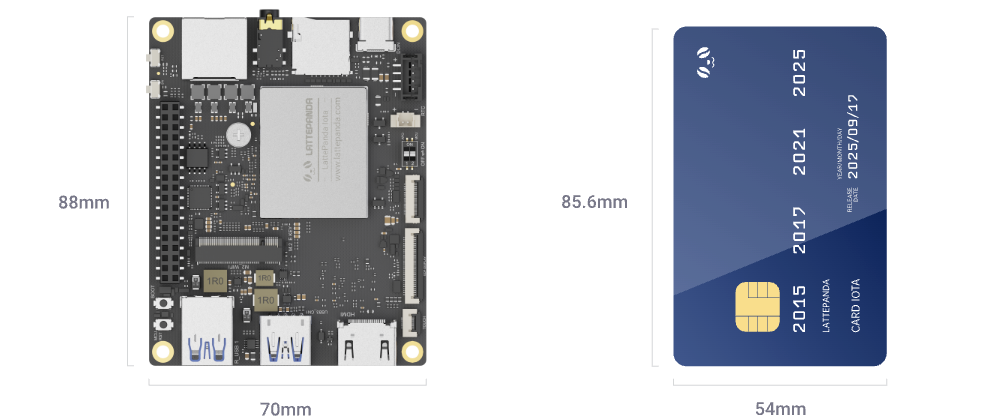

    He's Palm-sized
    Fits anywhere
    size

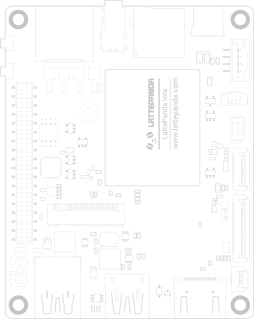

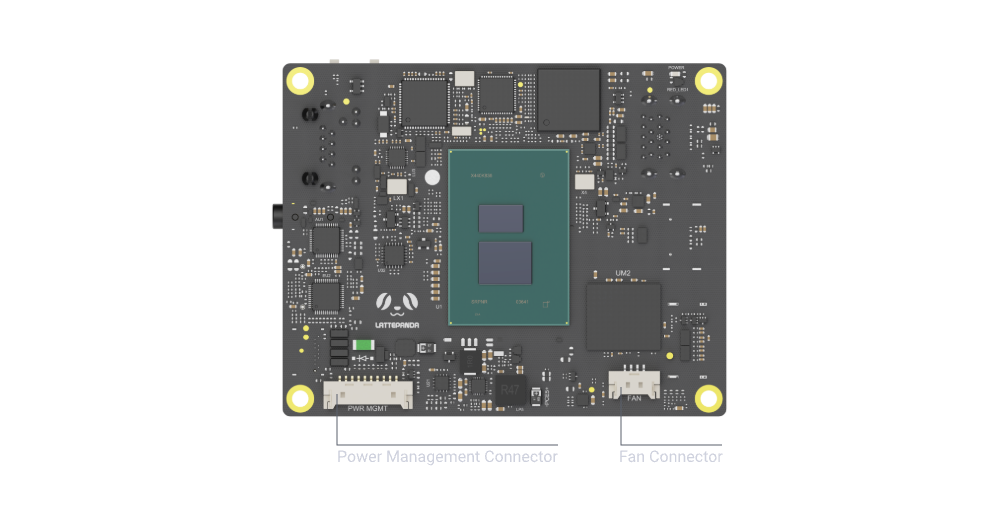

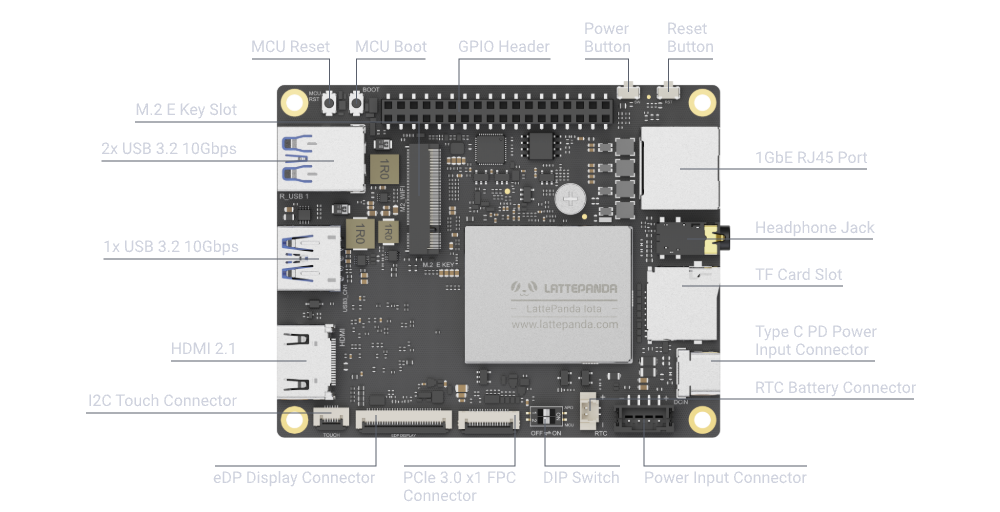

    His Rich Interfaces
    Fit Your Needs
    boardFornt
    boardFornt
    He's Gentle or Wild
    Passive to Active Cooling
    background

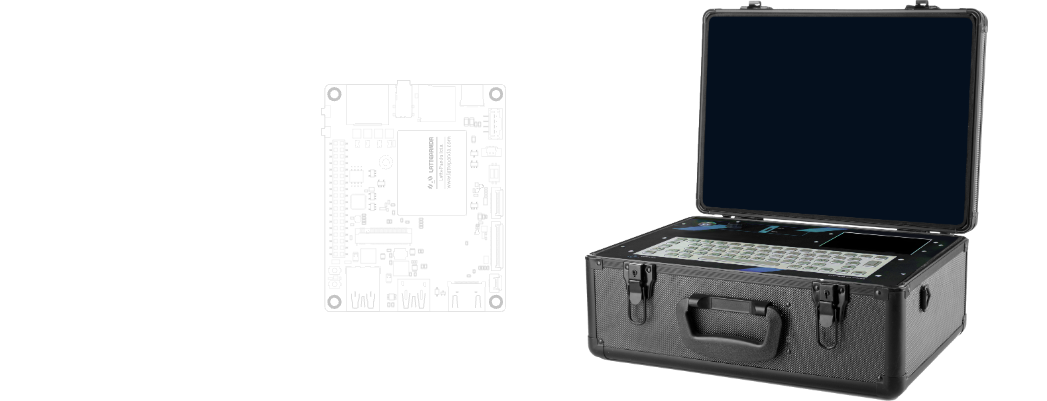

    Endless Expansion Options
    • movieDommovieDommovieDommovieDom
    • movieDommovieDommovieDommovieDom
    • movieDommovieDommovieDommovieDommovieDom
      00:00:00
    • movieDommovieDommovieDommovieDom

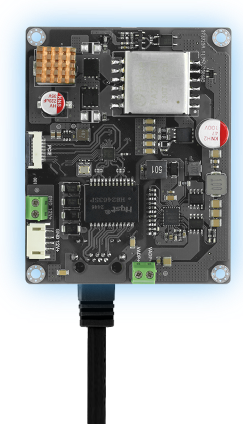

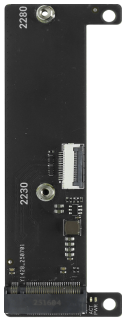

    + M.2 M Key Exp. Board
    + PoE Exp. Board

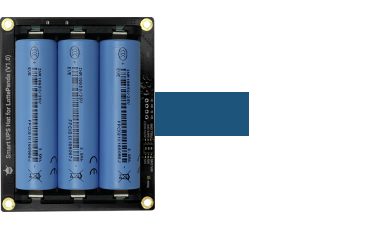

    + UPS Exp. Board

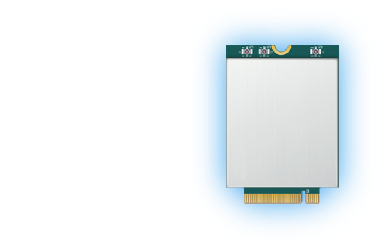

    4G LTE Exp. Board
    The M.2 expansion board Support SSDs for expanded storage capacity, YOLO accelerator cards for AI vision tasks and LLM cards for AI inference—transforming the LattePanda IOTA into a platform ready for AI applications.
    More Info

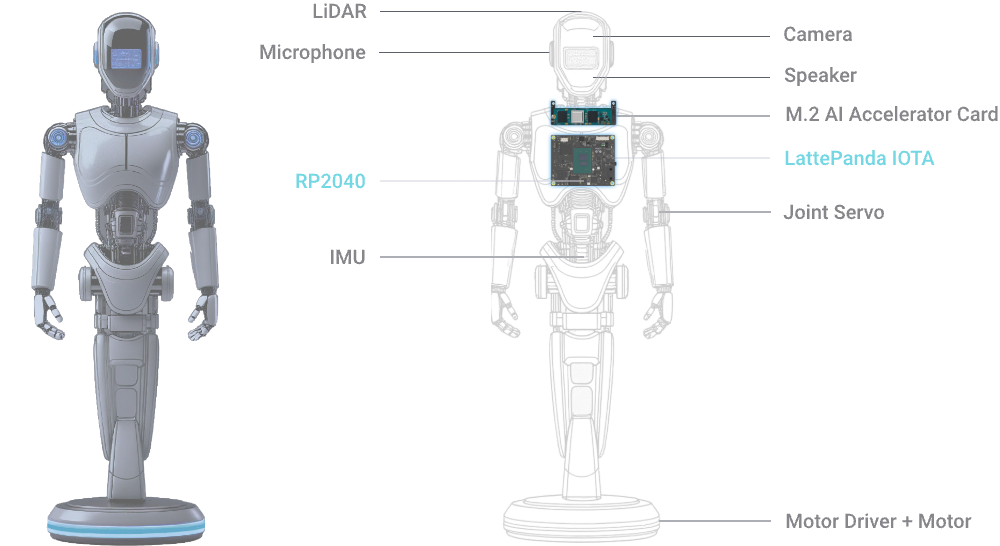

    Advanced Peripheral Control
    with RP2040 co-processor
    LattePanda IOTA, paired with an M.2 LLM accelerator card, delivers powerful AI-driven decisions, while the dedicated RP2040 co-processor controls sensors and actuators for real-time physical action. Perception, inference, and control—all on a single board. robotImg
    background

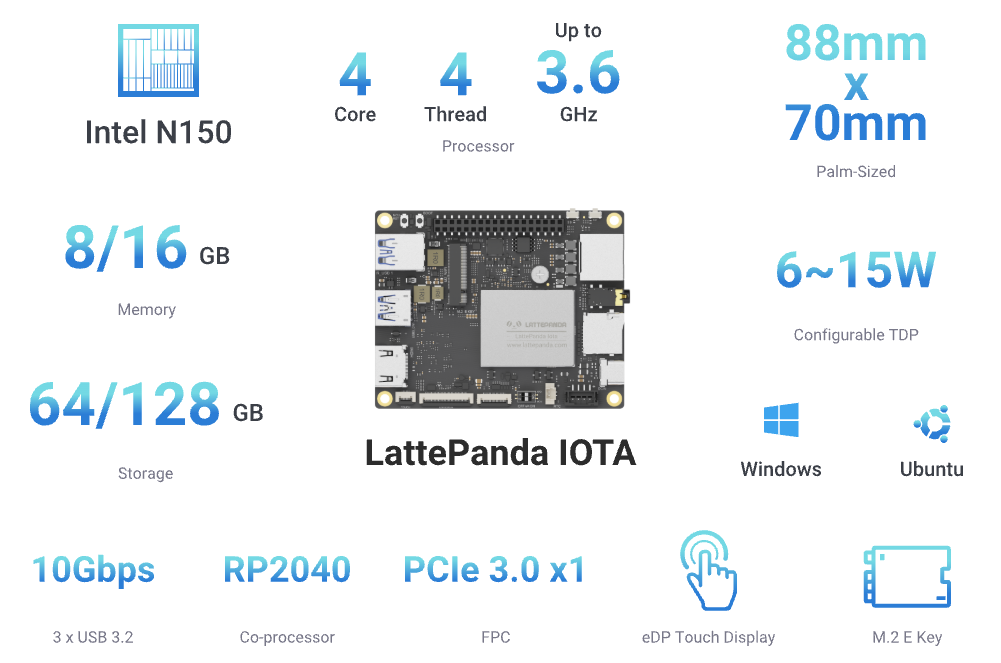

    Specification
    Product LattePanda IOTA
    CPU Intel® Processor N150, 4 Cores/4 Threads Up to 3.60 GHz
    Graphics Intel® Graphics 24 Execution Units, up to 1 GHz
    Memory 8GB/16GB LPDDR5 4800MT/s with In-band ECC
    Storage 64GB/128GB eMMC 5.1
    Display 1x HDMI 2.1 Up to 4096 x 2160 @ 60Hz1x eDP 1.4b，2 Lanes Up to 1920 x 1080 @60Hz
    USB Ports 3 x USB 3.2 Gen 2 Type A 10Gbps1 x USB 2.0 Pin Header 1 x USB Type-C PD 15V Power Input Only
    Network 1GbE RJ45 Port Support WOL
    Operating System Windows 10 & 11 Ubuntu 22.04 & 24.04
    Expansion Slots M.2 E Key 2230 Slot PCIe/CNVioTF Card Slot USB2.0PCIe FPC Connector PCIe 3.0x1 0.5mm
    16 Pin
    Co-Processor RP2040 MCU 133MHz Dual-core Arm Cortex-M0+, 264KB SRAM, 8MB Flash
    GPIO & Other Features Up to 3x Analog Inputs 1x RTC Battery Connector 1.25mmUp to 16x Digital Input/Output 1x DIP Switch auto power on; MCU power control1x UART 1x Power Management Connector MX1.25 10 Pin1x USB 2.0 1x PH2.0 4-Pin Connector Power Input1x Fan Port MX1.25 4Pin PWM 5V1x Speaker Audio
    Audio 3.5mm Microphone Headphone Combo Connector
    Power Supply USB Type-C PD 15VPH2.0-4Pin Power Input 10~15V DC
    Dimension 88mm x 70mm x 19mm
    background
    Your Journey Continues Here
    Upgrade Now Migration Guide
    background
    Resources & Community
    Support
    btnImage btnImagebtnImage btnImagebtnImage btnImagebtnImage btnImagebtnImage btnImagebtnImage btnImagebtnImage btnImage

    LattePanda IOTA is a palm-sized, low-power embedded X86 single-board computer powered by the Intel Twin Lake N150 quad-core processor — the next-generation successor to Alder Lake N100 with long lifecycle support. Delivering 2–3× CPU performance and 10–30× GPU performance over Raspberry Pi 5, IOTA enables smooth execution of edge AI, TinyML, and embedded AI workloads for next-generation intelligent systems.

    Available in two configurations (8GB/64GB and 16GB/128GB), LattePanda IOTA supports both Windows and Linux, with adjustable TDP (6W–15W) for flexible scaling across robotics, Industrial IoT (IIoT), and edge computing deployments.

    Its compact form factor and expansion ecosystem — including UPS, PoE, M.2 M-Key, and 4G LTE modules — empower developers to build specialized solutions such as robotic control gateways, machine vision edge devices, AI-powered robots, digital signage, autonomous logistics systems, and mobile data loggers.

    With ultra-thin eDP touchscreen compatibility, LattePanda IOTA also excels in handheld instruments, portable medical devices, field research kits, and off-grid monitoring. The integrated RP2040 co-processor ensures real-time control of motors, sensors, and speech interfaces, complementing the x86 system by running TinyML models, managing I/O, and accelerating transformer-based AI pipelines.

    Leveraging the Intel N150 and RP2040 synergy, IOTA offers a powerful platform for robotics, embodied AI, and LLM acceleration at the edge, making it ideal for developers exploring AI-driven automation, LLM-powered embedded systems, and next-generation robotic intelligence.

    LattePanda IOTA — the expandable X86 mini computer designed for AI, robotics, and the future of edge intelligence.
